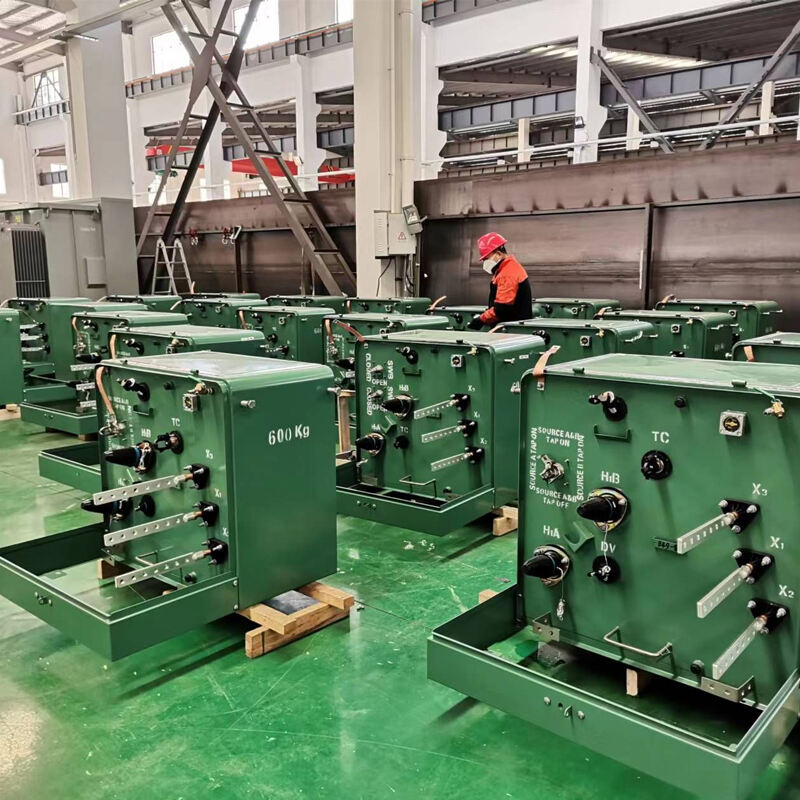

SINGLE - PHASE PAD MOUNTED TRANSFORMER

Dingxin manufactures a single-phase pad mounted transformer is a ground-level electrical distribution transformer housed within a robust, lockable, tamper-resistant, and weatherproof metal enclosure. Designed for outdoor installation on a concrete slab or "pad," it serves as a crucial component in the electrical grid, typically stepping down higher distribution voltages (like 15kV, 25kV, or 35kV) to the standard single-phase utilization voltage (120/240V or 120/208V) used to power residential homes, small businesses, and light commercial loads.

As an independent complete set of power transformation and distribution device with rated capacity of 63~1600kVA in AC 50Hz, 6~10kV network, it combined transformer can be used both outdoors and indoors. It is widely used in industrial parks, urban residential areas, commercial areas, high-rise buildings, temporary construction sites and other places.

It is applicable to small unattended substations with voltage of 35KV and below and main transformer capacity of 5000KVA and below, and is widely used in urban industrial substations, 10KV ring network systems, 35KV rural power grid substations and other occasions.

• Upper limit of ambient air temperature:+40℃, lower limit: - 25℃.

• Altitude: not more than 1000m.

• Relative ambient temperature: air humidity is not more than 90%.

• Outdoor wind speed shall not exceed 35m/s.

• The ground inclination is not more than 5°, and there is no severe vibration and impact.

• There is no conductive dust, no explosion hazard, and no corrosive metal and electrical components.

When the product is used under normal environmental conditions beyond the specified limit, the user shall negotiate with our company.
