Wind Power Collection & Grid Connection Solutions

Wind projects need electrical equipment that connects turbine generation to the collection network under changing output and demanding site conditions.

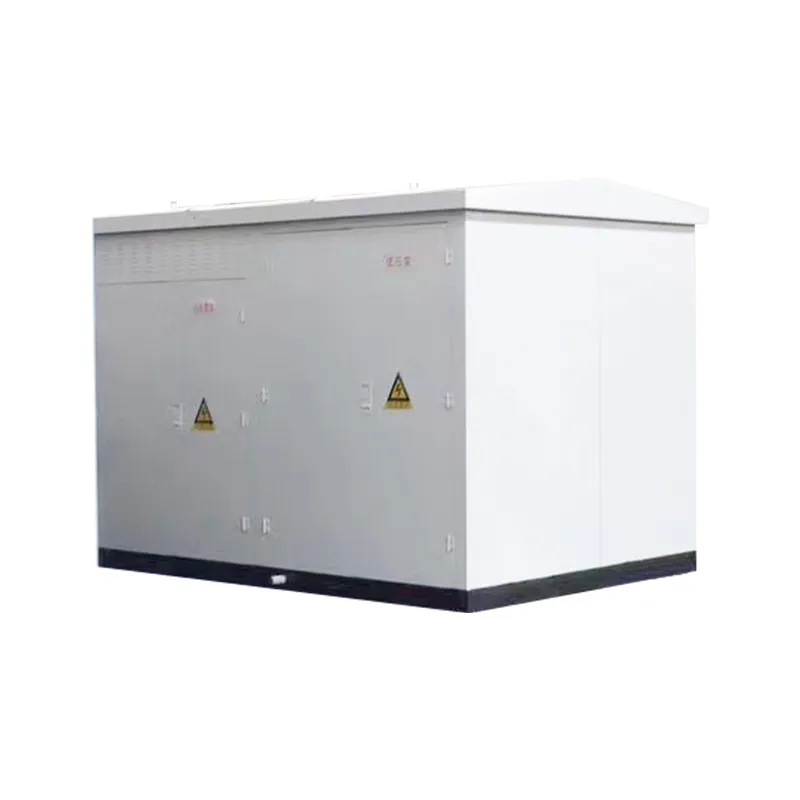

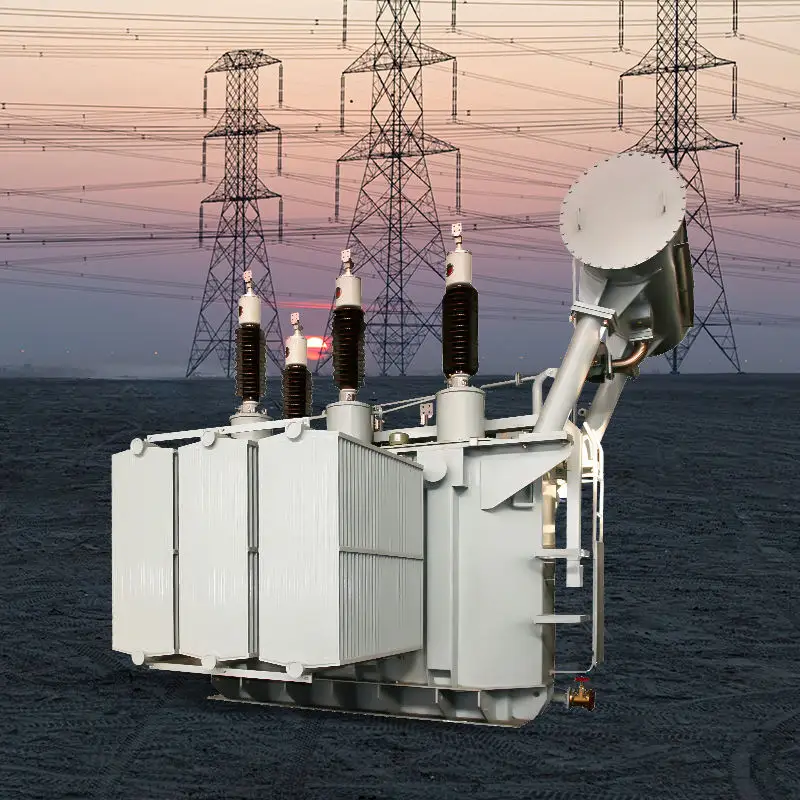

Dingxin Electric provides wind power transformers and combined substation solutions for onshore wind farms and distributed wind projects. Transformer, switchgear, protection, and monitoring configurations can be tailored to turbine capacity, collection voltage, and project interface requirements.

· Wind Applications — Turbine-to-Collection Step-Up

· Integrated Equipment — Transformers & Switchgear

· Site-Specific Design — Outdoor Installation Requirements

Solution Benefits

Coordinate wind power transformation with your turbine system and project environment.

Turbine-Matched Configuration

Capacity, voltage ratio, and electrical parameters selected around turbine requirements.
Coordinated Step-Up System

Transformer and switchgear equipment configured for the project’s collection network.
Environmental Customization

Design requirements reviewed for temperature, humidity, dust, altitude, and salt exposure where applicable.
Protection Integration

Protection and auxiliary equipment incorporated according to the electrical design.
Remote Monitoring Options

Optional monitoring and communication interfaces support access to operating information.
Factory Assembly & Testing

Integrated equipment assembled and tested within the agreed supply scope before shipment.

Applications of Our Wind Power Solutions

Step-up and collection equipment for different onshore wind project layouts.

Onshore Wind Farms

Transformer and substation equipment for multi-turbine collection systems.
Distributed Wind Projects

Step-up configurations for smaller wind generation installations.
Remote Wind Sites

Equipment planning that accounts for transportation, access, and installation constraints.
Coastal Wind Projects

Project-specific environmental requirements for sites exposed to humidity and salt.

Reliable Voltage Step-Up for Wind Energy Projects

Wind generation varies with operating conditions, while equipment locations can introduce additional environmental and access challenges. A suitable step-up solution must account for the turbine’s electrical characteristics and the collection system it connects to. Dingxin Electric configures wind power transformers and combined substations around turbine capacity, output voltage, collection voltage, impedance, and protection requirements. Medium-voltage switchgear, low-voltage equipment, monitoring, and auxiliary components can be included according to the project scope. Enclosure arrangements and equipment layouts can also be adapted to site conditions, transportation limits, and maintenance access. Optional communication interfaces provide a connection to the project’s monitoring system where specified.

Services for Your Wind Project

Turbine Interface Review

Review of turbine ratings and transformer connection requirements.
Collection-System Coordination

Equipment configuration around collection voltage and protection interfaces.
Environmental Design Review

Assessment of specified site conditions and enclosure requirements.
Monitoring & Technical Support

Optional communication integration and project documentation support.

Configure Your Wind Power Step-Up System

Send us your turbine capacity, output voltage, collection voltage, and site conditions. Our engineers will help define the equipment configuration.
