Home > Products > Oil Immersed Transformer > Three phase oil immersed transformer
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Wood case |
| Delivery Time: | 25days/Negociatiated |
| Payment Terms: | T/T, L/C, Western Union, Paypal |
| Certificate: | UL, IEC, CE, CCC, ISO |

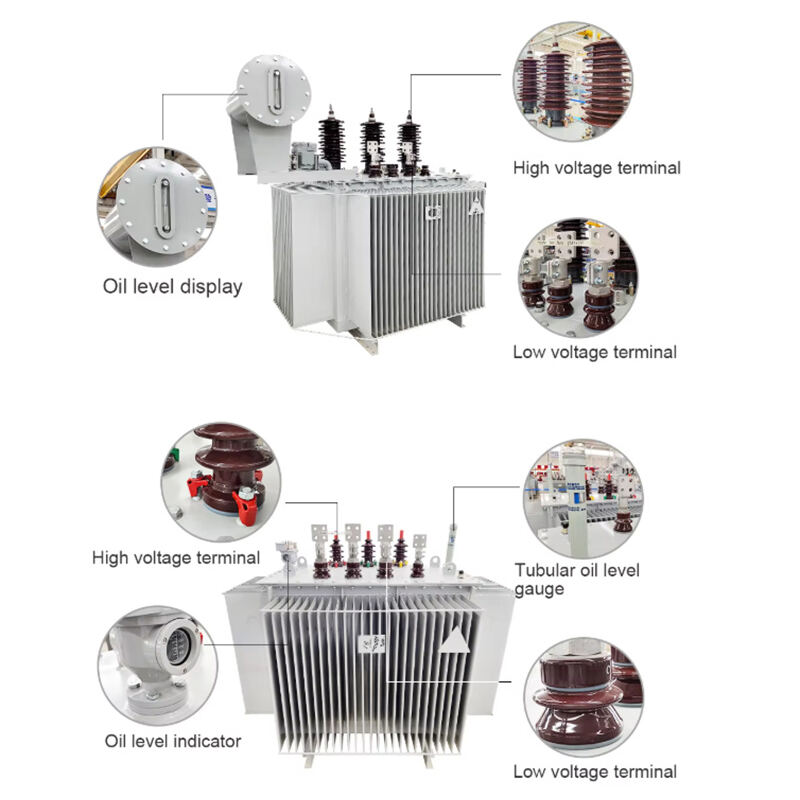

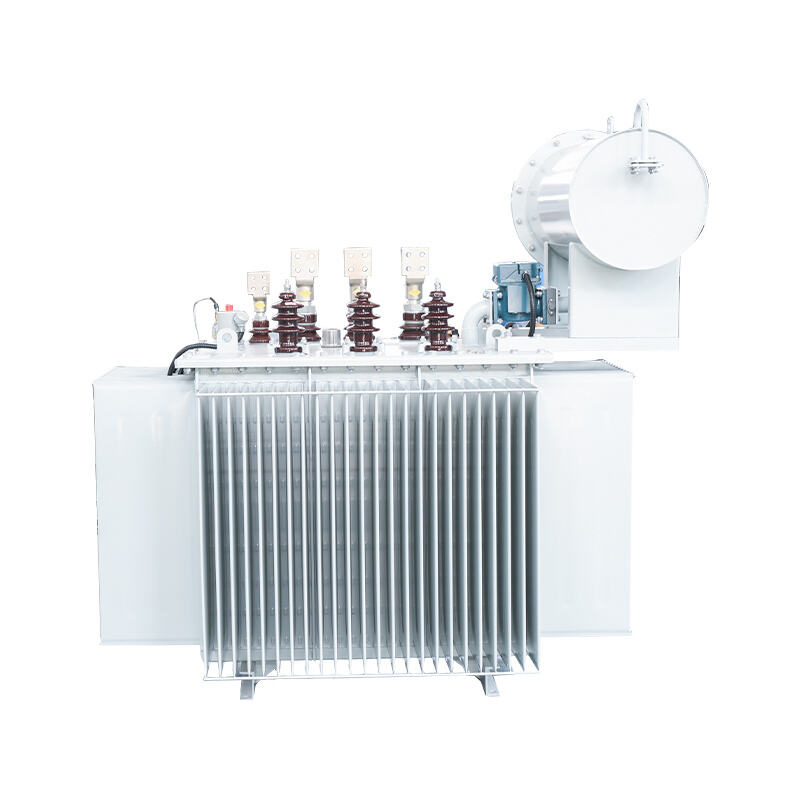

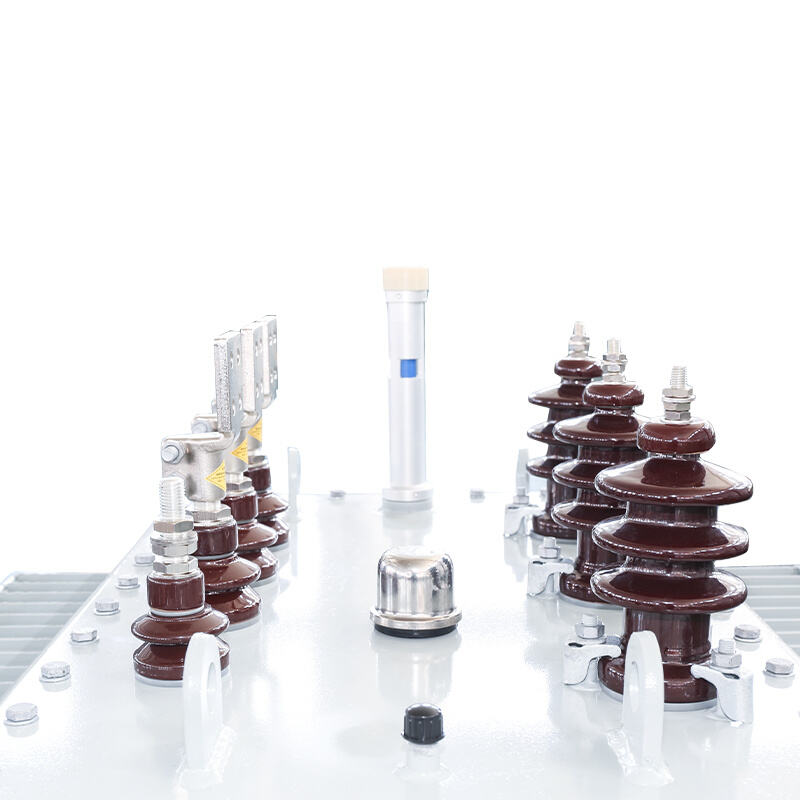

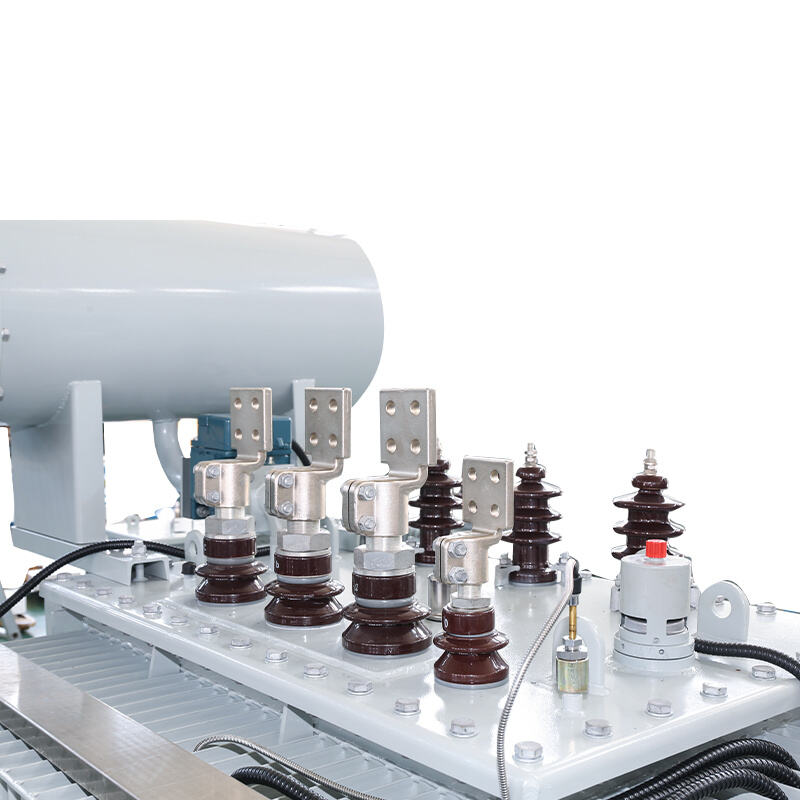

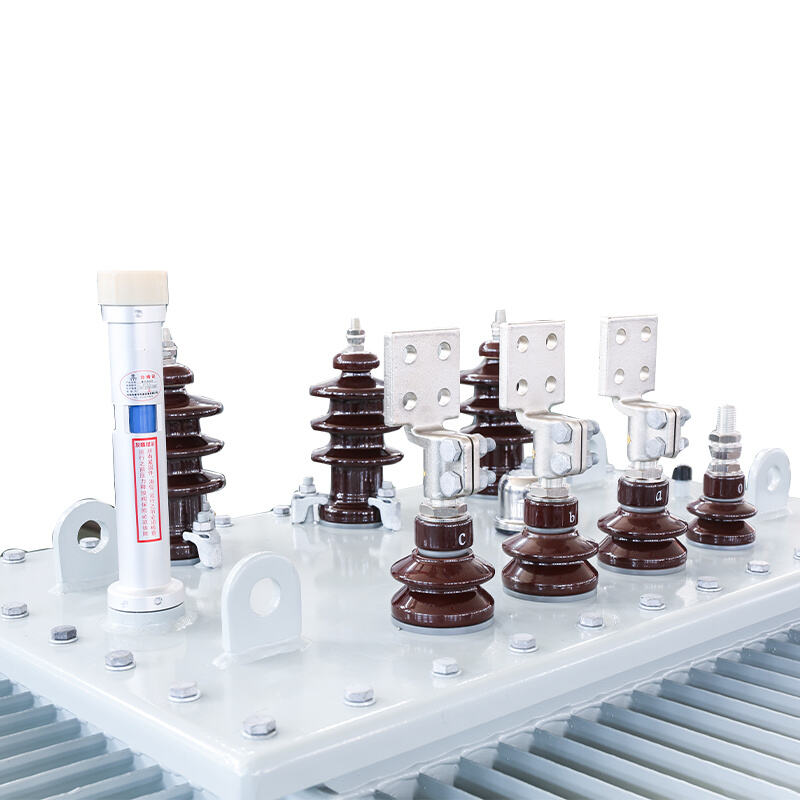

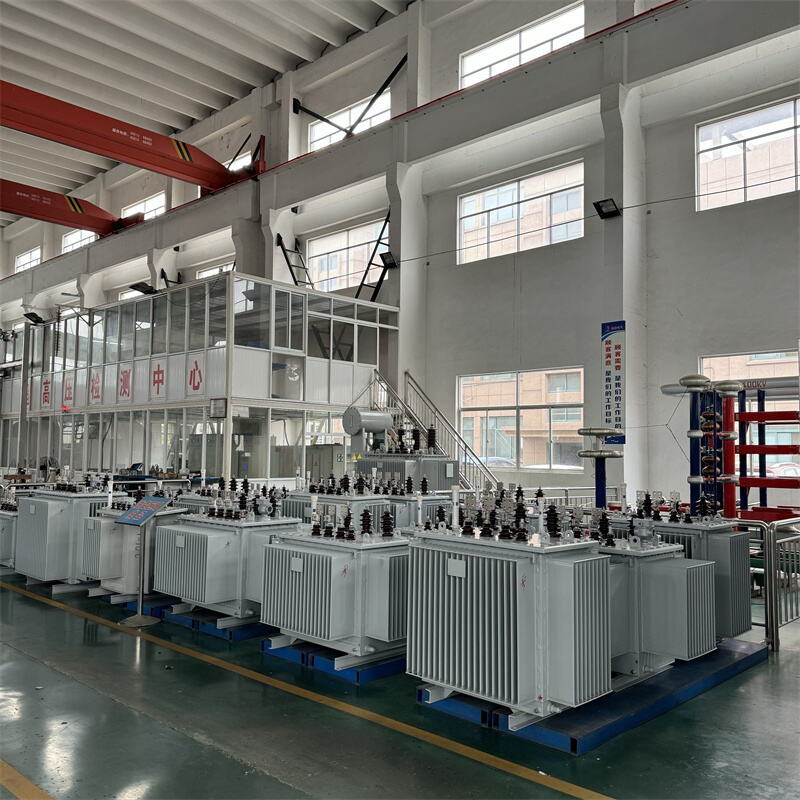

The fully sealed transformer adopts the type of fully oil-filled seal.Corrugated oil tank shell is a permanently sealed oil tank with its own elasticity to adapt the expansion of oil. It has been widely used in the power distribution equipment.
EC 60076-1/3/5
IEEE C57.12.00
IEEE C57.12.90
ANSI C57.12.10
• The altitude shall not exceed 1000 m.
• Maximum Ambient Temperature +40℃
• Maximum Annual Mean Temperature +20℃
• Indoors or Outdoors
• Maximum Daily Mean Temperature+30℃
• Minimum Air Temperature -25℃
• Transformers operating under the special service conditions can be provided according to customers' requirements.
|
Rated capacity(KVA) |
Voltage combination |
Connection Symbol |
S13 |
Short circuit impedance(%)4.0 |
|||
|
High voltage(KV) |
Branching(%) |
Low voltage(KV) |
No-load Loss(KW) |
On-Load Loss(KW) |
|||
| 30 |
6 6.3 10 10.5 |
±5 ±2x2.5 |
0.4 |
Dyn11 Yzn11 Yyno |
0.080 | 0.630/0.600 | |
| 50 | 0.100 | 0.910/0.870 | |||||
| 63 | 0.110 | 1.090/1.040 | |||||
| 80 | 0.130 | 1.310/1.250 | |||||
| 100 | 0.150 | 1.580/1.500 | |||||
| 125 | 0.170 | 1.890/1.800 | |||||
| 160 | 0.200 | 2.310/2.200 | |||||
| 200 | 0.240 | 2.730/2.600 | |||||
| 250 | 0.290 | 3.200/3.050 | |||||
| 315 | 0.340 | 3.830/3.650 | |||||
| 400 | 0.410 | 4.520/4.300 | |||||
| 500 | 0.480 | 5.410/5.150 | |||||
| 630 |
Dyn11 Yyno |
0.570 | 6.200 | 4.5 | |||
| 800 | 0.700 | 7.500 | |||||
| 1000 | 0.830 | 10.300 | |||||
| 1250 | 0.970 | 12.000 | |||||
| 1600 | 1.170 | 14.500 | |||||
| 2000 | 1.550 | 18.300 | |||||
| 2500 | 1.830 | 21.200 | |||||
*Note: The data in the table is subject to change without prior notice, and the product is subject to delivery.
