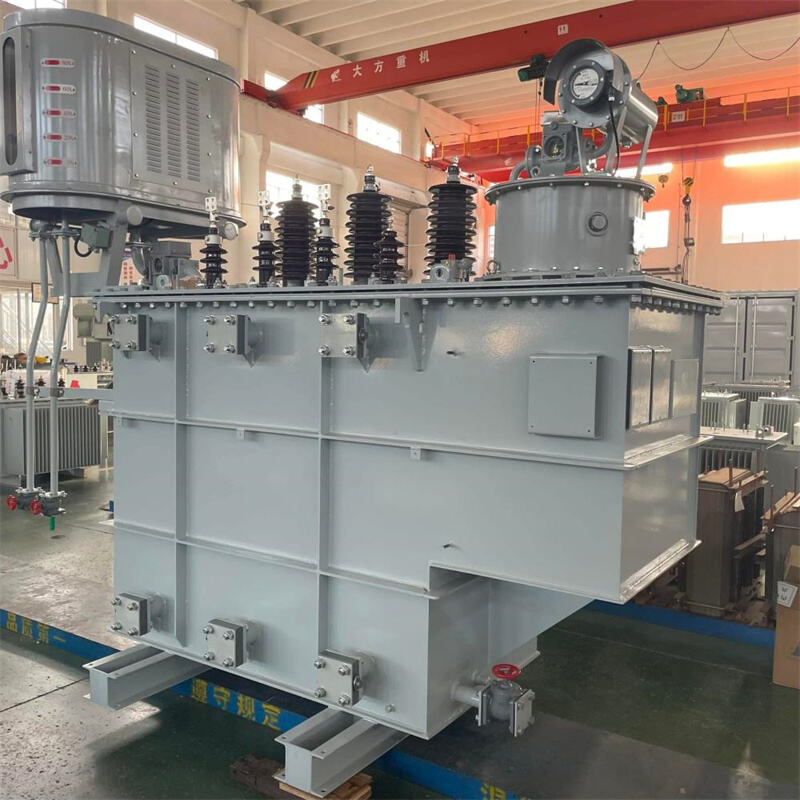

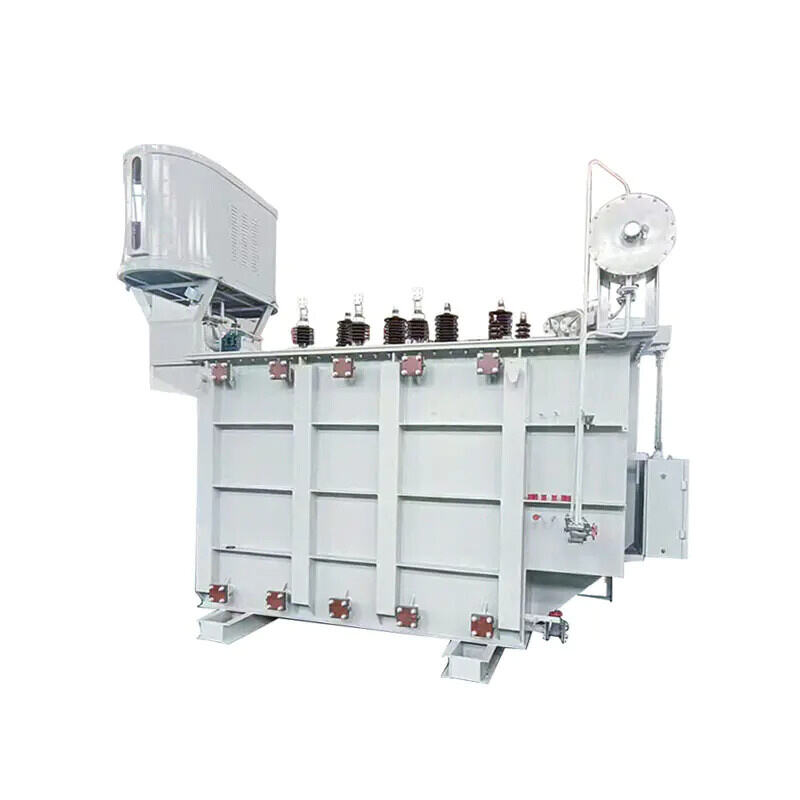

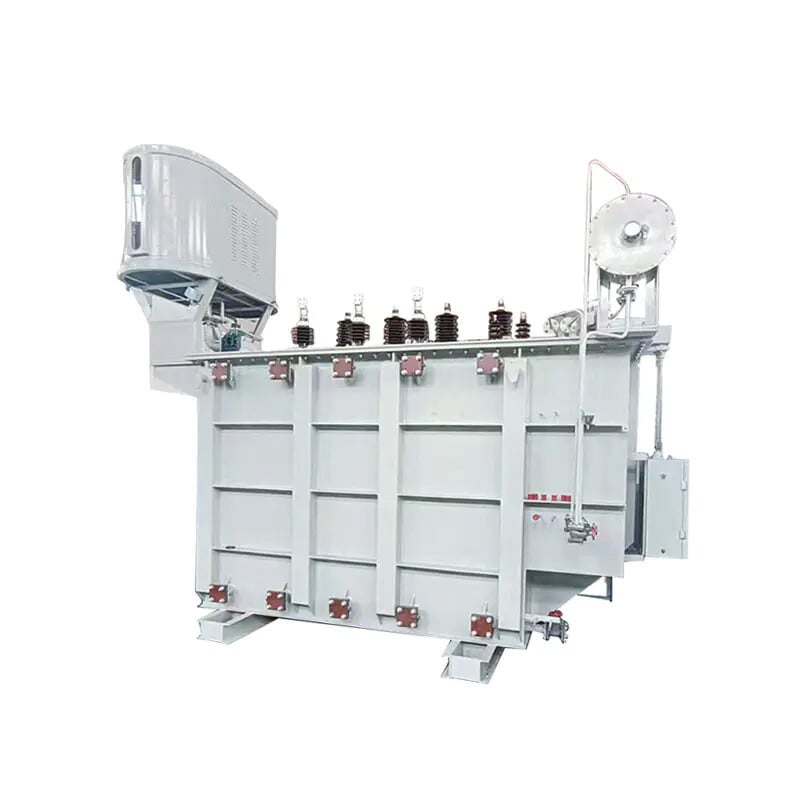

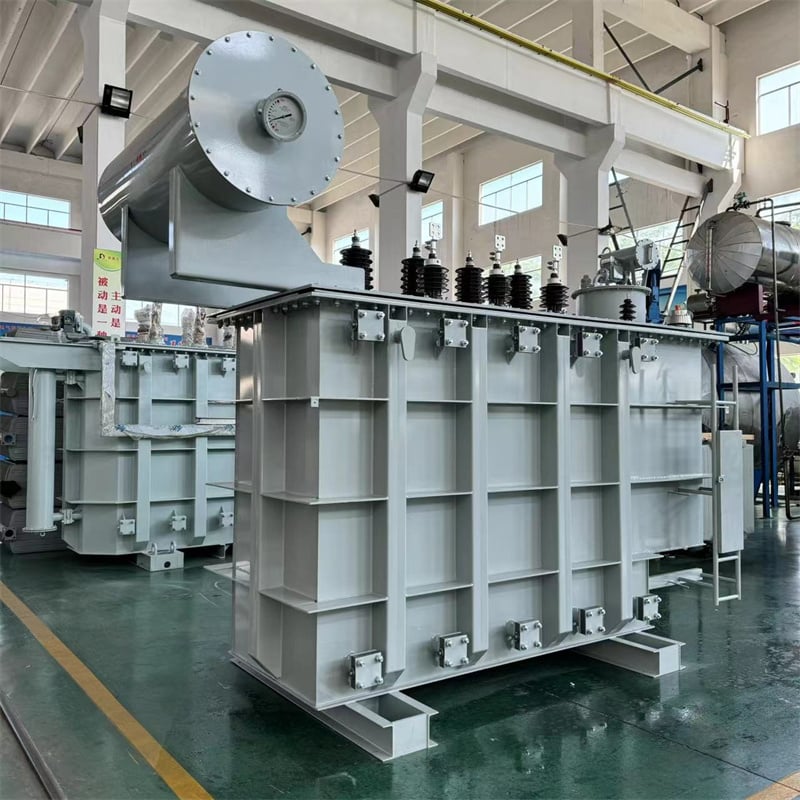

POWER TRANSFORMER

Advantages

· High Efficiency & Low Loss Power Transmission

· Superior Insulation & Strong Short-Circuit Resistance

· Energy-Saving, Stable & Long Service Life

· Low Noise & High Reliability Operation

Applications

· For Substations, Industrial Parks & Urban Power Grids

· Ideal for Power Distribution & Renewable Energy Stations

· Designed for High-Voltage Power Supply Systems

· Applied in Large-Scale Infrastructure & Industrial Projects

Selling Points

· Premium Performance 35kV Class Power Transformer

· Advanced Design for Safe & Maintenance-Free Operation

· Eco-Friendly & High Overload Capacity

· Core Equipment for Modern Smart Grid Systems

Information
Description
Features
Specifications
Pictures
Our Honor

Inquiry

+86-513-88779999

[email protected]

Information

Minimum Order Quantity:	1 Set
Packaging Details:	Wood case
Delivery Time:	25days/Negociatiated
Payment Terms:	T/T, L/C, Western Union, Paypal
Certificate:	UL, IEC, CE, CCC, ISO

Description

High pressure transformer, use analysis software and calculation and validation procedures to the transformer core, winding. implement body, lead, fuel tanks, etc, Parts of the optimal design and carry on the omni - directional validation, ensure product performance.

Superior process equipment elaborate material selecting and ecient manufacturing.making the transformer has small volume, light weight low loss, low partial discharge, low noise characteristics, the product quality is superior, energy conservation and environmental protection,easy installation and maintenance, reliable operation and effectively reduced products running costs.

Features

Specifications

Product Model	Rated Capacity(KVA)	Voltage Combination		Connection Symbol	Consumption(KW)		No-load Current(%)	Short Circuit Impedance(%)
Product Model	Rated Capacity(KVA)	High Voltage(KV)	Low Voltage(KV)	Connection Symbol	No-load Loss	On-Load Loss	No-load Current(%)	Short Circuit Impedance(%)
S11-800/35	800	35±x5%	10.5 6.3 3.15	Yd11	0.98	9.40	0.65	6.5
S11-1000/35	1000				1.15	11.5	0.65
S11-1250/35	1250				1.40	13.9	0.55
S11-1600/35	1600				1.69	16.6	0.45
S11-2000/35	2000				2.17	18.3	0.45
S11-2500/35	2500				2.56	19.6	0.45
S11-3150/35	3150	38.5±x2.5% 35±2.5%			3.04	23.0	0.45	7.0
S11-4000/35	4000				3.61	27.3	0.45
S11-5000/35	5000				4.32	31.3	0.45
SF11-6300/35	6300	38.5±2x2.5% 35±2x2.5%	11 10.5 6.6 6.3 3.3 3.15	Ynd11	5.24	35.0	0.45	8.0
SF11-8000/35	8000				7.20	38.4	0.35
SF11-10000/35	10000				8.70	45.3	0.35
SF11-12500/35	12500				10.0	53.8	0.30
SF11-16000/35	16000				12.1	65.8	0.30
SF11-20000/35	20000				14.4	79.5	0.30
SF11-25000/35	25000				17.0	94.0	0.25	10.0
SF11-31500/35	31500				20.2	112	0.25	10.0
