Discover Dingxin’s SC(B)10/12/13 cast resin dry-type transformer solution for Vietnam, featuring F-class insulation, low losses, partial discharge below 5pC, low noise, superior fire safety, and optional smart monitoring.
Dingxin supplied an SC(B) series cast resin dry-type transformer solution for a power distribution project in Vietnam. Designed for modern buildings and demanding industrial environments, the transformer combines F-class insulation, vacuum-cast coil technology, low partial discharge, efficient thermal performance, and excellent fire safety.
The solution provides safe and dependable power distribution while reducing maintenance requirements and long-term operating costs.
Vietnam’s warm and humid climate can place considerable demands on electrical equipment. The project therefore required a transformer capable of maintaining stable performance under changing temperatures, high humidity, condensation risks, and continuous electrical loads.
The principal requirements included:
Dingxin selected a cast resin dry-type transformer from its SC(B)10/12/13 series. This product platform covers rated capacities from 30kVA to 4,000kVA and can be configured according to the project’s required capacity, voltage ratio, vector group, impedance, enclosure protection level, and cooling method.
Unlike conventional oil-immersed transformers, the dry-type design does not require insulating oil. This eliminates the risk of oil leakage and significantly reduces fire and environmental hazards, making the transformer particularly suitable for installation close to load centers and occupied areas.

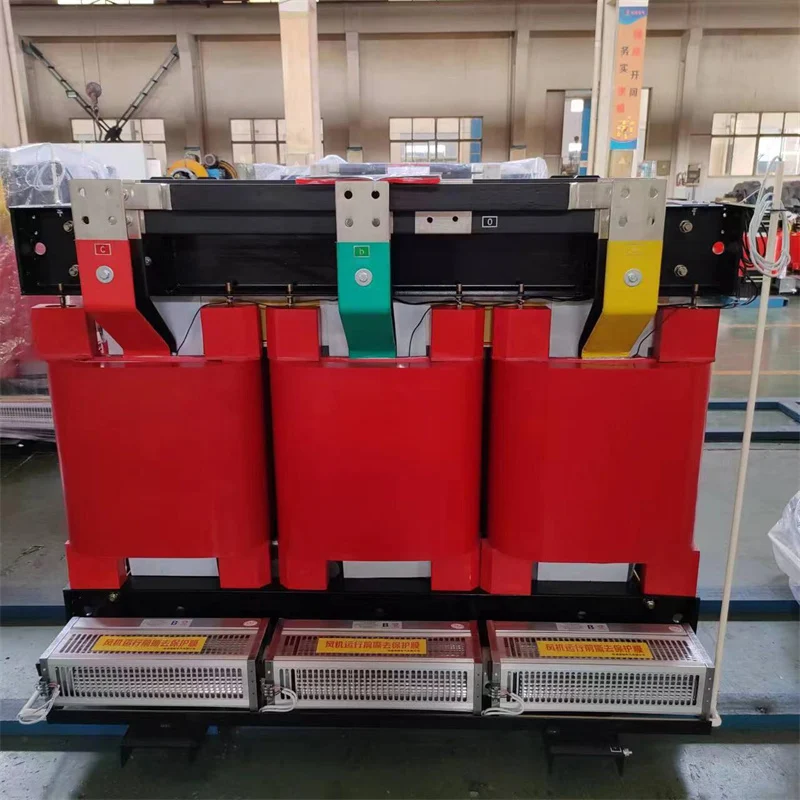

The transformer uses an F-class insulation system designed to maintain dependable dielectric and mechanical performance at elevated operating temperatures.
Its resin-cast winding structure provides excellent thermal stability, while the available Class F temperature-rise margin helps prevent premature insulation aging. Effective heat dissipation and controlled temperature rise contribute to a longer service life, stable output, and reliable operation under changing load conditions.
The high-voltage windings are manufactured using controlled vacuum-casting technology. During this process, the windings are encapsulated in high-quality insulating resin, helping eliminate internal air gaps and improving insulation consistency.
This construction provides:
The solid insulation system also protects the windings from corrosive gases, contamination, and condensation.
The magnetic core and winding structure are optimized to reduce energy losses and operating noise. High-quality core materials, precision cutting, stepped-lap core assembly, and controlled clamping help minimize magnetic vibration.
The transformer is designed to achieve operating noise below 45dB under the specified configuration and test conditions. Its low-loss performance improves distribution efficiency and helps reduce electricity costs throughout the equipment’s service life.
These characteristics make the solution suitable for hospitals, shopping malls, residential developments, offices, and other noise-sensitive locations.
The cast resin dry-type transformer offers excellent flame-retardant and self-extinguishing properties. Because it contains no combustible insulating oil, it substantially reduces the risk of fire propagation.
The product is well suited to locations with strict fire-protection requirements, including:
Its clean, oil-free construction also simplifies installation and reduces the environmental impact associated with oil handling, leakage prevention, and disposal.
For the Vietnam project, resistance to humidity and condensation was an important design consideration. The encapsulated windings prevent moisture from directly affecting the electrical insulation, while the anti-condensation design supports reliable operation in humid environments.
Depending on the installation conditions, Dingxin can also provide protective enclosures, ventilation arrangements, space heaters, and other accessories to improve environmental protection.
The transformer can be equipped with an intelligent temperature-control system and IoT-ready temperature sensors. These devices continuously monitor winding temperature and can provide alarms, fan-control signals, or shutdown commands when preset thresholds are reached.
When connected to a facility monitoring platform, the system supports:
This monitoring capability allows operators to identify abnormal thermal conditions at an early stage and improve maintenance efficiency.
Dingxin applies controlled manufacturing and inspection procedures throughout core assembly, coil winding, vacuum casting, curing, active-part assembly, wiring, enclosure installation, and final testing.
The completed transformer undergoes comprehensive factory inspection. Testing may include:
These procedures verify the transformer’s electrical, thermal, mechanical, and insulation performance before delivery.
The Dingxin cast resin dry-type transformer provides the Vietnam project with a safe, efficient, and low-maintenance power distribution solution.
Its F-class insulation, vacuum-cast windings, low partial discharge, and moisture-resistant construction support reliable operation in demanding climatic conditions. Low losses help reduce electricity consumption, while quiet operation makes the transformer suitable for installation near occupied or noise-sensitive areas.
The delivered solution provides:
